Micro Jet Components

info@microjetcomponents.com

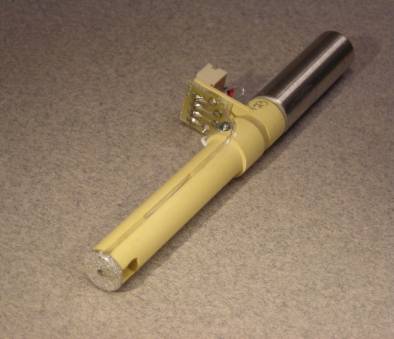

Standard Capillary Nozzle

with piezo crystal, plastic holder and charging electrode



Technical Specification

Flow rate: 0.23 g/min 15 % at 3.7 MPa and 21 C

using fluid with

Viscosity: 1.87 0.03 cP

Density: 0.973 0.001 g/cm

Surface tension: 39.9 1.0 dyn/cm



Maximum working pressure: 6 MPa



Piezo crystal driving conditions:

Frequency rate: 0.9 1.2 MHz

Voltage: max. 20 Vp-p



Environment:

Operational + 10 - 35 C at 20 - 80 % RH

Storage: 0 - +50 C at 10 90 % RH



Nozzle inner diameter: Approx. 10 m



Assembly Dimensions:

Total length: 85 mm

Holder outer diameter: 7.9 mm



Fluid line connection: MJC standard (M6)



Package: Individually packed in protecting plastic envelop box.

Fluid connection side closed with sealing screw.

Nozzle side and holder protected with filtered air sleeve.



Article no.: 200.023

Price on request






Micro Jet Components

info@microjetcomponents.com

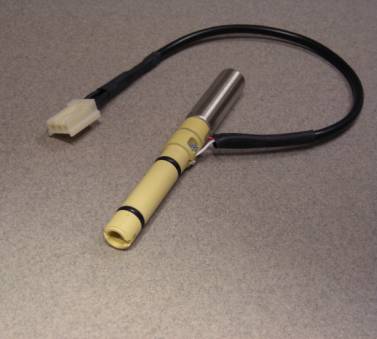

Standard Capillary Nozzle

with piezo crystal and plastic holder



Technical Specification

Flow rate: 0.23 g/min 15 % at 3.7 MPa and 21 C

using fluid with

Viscosity: 1.87 0.03 cP

Density: 0.973 0.001 g/cm

Surface tension: 39.9 1.0 dyn/cm



Maximum working pressure: 6 MPa



Piezo crystal driving conditions:

Frequency rate: 0.9 1.2 MHz

Voltage: max. 20 Vp-p



Environment:

Operational + 10 - 35 C at 20 - 80 % RH

Storage: 0 - +50 C at 10 90 % RH



Nozzle inner diameter: Approx. 10 m



Assembly Dimensions:

Total length: 84 mm

Holder outer diameter over O-rings: 8.8 mm

(Recommendations for installation are available.)

Fluid line connection: MJC standard (M6)



Package: Individually packed in protecting plastic envelop box.

Fluid connection side closed with sealing screw.

Nozzle side and holder protected with filtered air sleeve.



Article no.: 200.021

Price on request
